Panel-Lam Vehicle Bridges are shop manufactured kits that assemble fast in any season. Available in single or multiple spans, with crash-tested railings and asphalt wear surface, Panel-Lam Vehicle Bridges provide added aesthetics without compromising strength or durability. Properly designed timber bridges handle all highway loads and require little or no maintenance. The longitudinal timber slab span requires no stringers creating a thin structure profile ideal for low headroom conditions.

Salt Storage Buildings



Wheeler buildings are not just covers, but containers. The sturdy treated timber construction allows the walls to be loaded up to 14′ high*, maximizing the space within the building. Wall heights and roof truss designs can provide over 30′ of clearance. 30 year roof shingle warranty and 25 year treated wood warranty included. Available with partitions, store multiple mixes of both salt and salt/sand. No conveyor required.

* Wall designs vary based on roof system. Material may be mounded toward the middle when roof clearance allows. Estimated building capacity will be reviewed specific to the application.



Interior Wall System

Interior Wall System

24' Eave Height

24' Eave Height

Interior

Interior

Side View with Door

Side View with Door

Side View

Side View

Salt Building

Salt Building

Salt Building with Sliding Door

Salt Building with Sliding Door

Recreation and Railing



Timber recreation bridges and rail provide unmatched aesthetics. With years of experience in the design and fabrication of both timber and steel bridges, with options on span length, configuration, and clearances.Timber guard rail and timber rail onto concrete are both available. The USDA Forest Service, Forest Products Laboratory in cooperation with the U.S. DOT Federal Highway Administration and the Midwest Roadside Safety Facility have adapted several crashworthy timber bridge railings and approach railing transitions for use on concrete bridge decks.

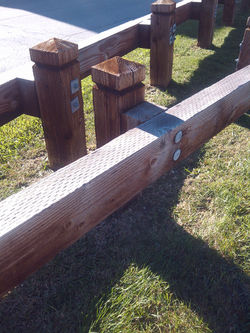

Guard Rail
